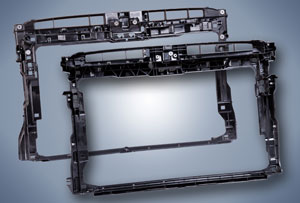

January, 28, 2013 - The front end carrier in the new Golf 7 is completely made from plastic. This makes the part that owes its shape to elaborate calculations and simulations one of the world's first front end carriers without metal reinforcement. Replacing the previous polypropylene hybrid part with an all-plastic part required use of not only Ultramid® B3WG8, a highly reinforced polyamide during development, but particularly the use of a simulation tool. The sheet steel parts that had been attached previously are now eliminated. This reduces the weight of the front end module significantly compared to that of the predecessor model, saving assembly time and thus costs. Volkswagen produces the part in-house.

Intelligent design

In addition to limited space for installation, the requirements to the all-plastic part include a variety of very challenging load cases: among them, static and dynamic hood latch failure, where incorrect opening and closing of the engine's hood is simulated and tested under the harshest conditions. At the same time, the stiffness and vibration behavior of the system comprising front end and radiator was optimized on the basis of CAE analyses and validated in an actual vibration test.

Crash sensor: correctly predicted

Special attention was devoted to the crash sensors attached to the front end. They ensure deployment of the airbag at the right moment in the event of a head-on collision. For this, the plastic part must exhibit a certain dynamic stiffness at a defined location and satisfy the automaker's crash acceleration requirements. In a real-world test, the vibration response of the part corresponded exactly to what was designed and predicted by the simulation toold: The Ultramid front end carrier transmits the collision signal correctly.

Precision with Ultramid plastic and CAE tool

The primary load cases provide the basis for a front end design; from these, an optimized topology can be derived. This topology gives the designer valuable information regarding the final shape of the part. Thanks to the highly accurate predictions of the simulation tool, only slight modifications were needed in moving from the prototype of the front end carrier to its serial production. This demonstrates the kind of challenging applications that can be addressed by combining a suitable material with the correct prediction and calculation tools.

Source: BASF
